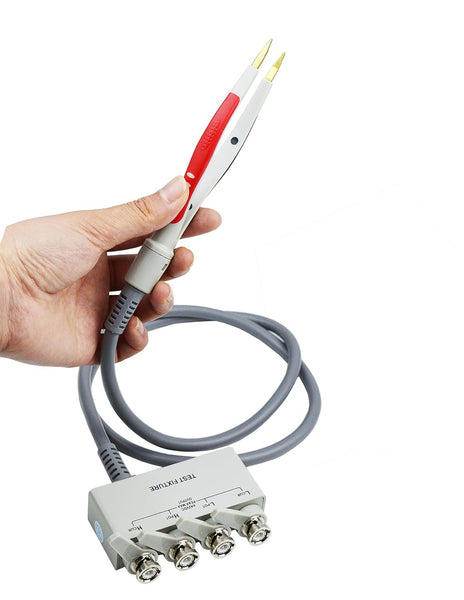

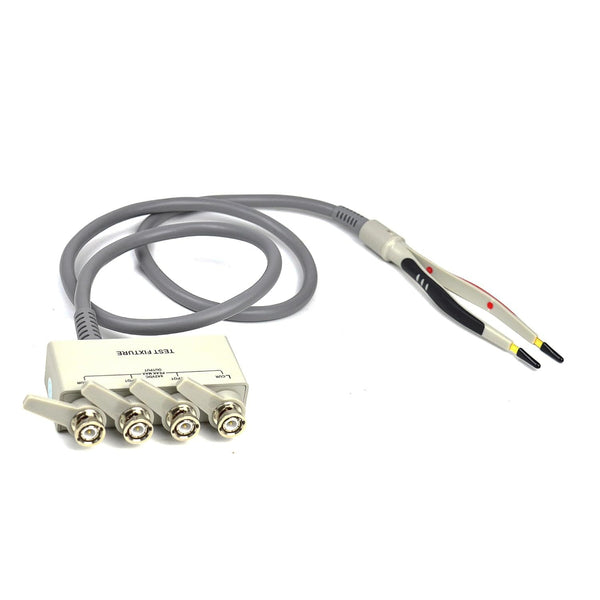

ZIBOO High-Precision LCR-08 4 Wire Test Fixture Tweezer for SMD with Shielding Box, for use with 4 Terminal-Pair LCR Meters and Impedance Analyzers
Regular price
$39.99 USD

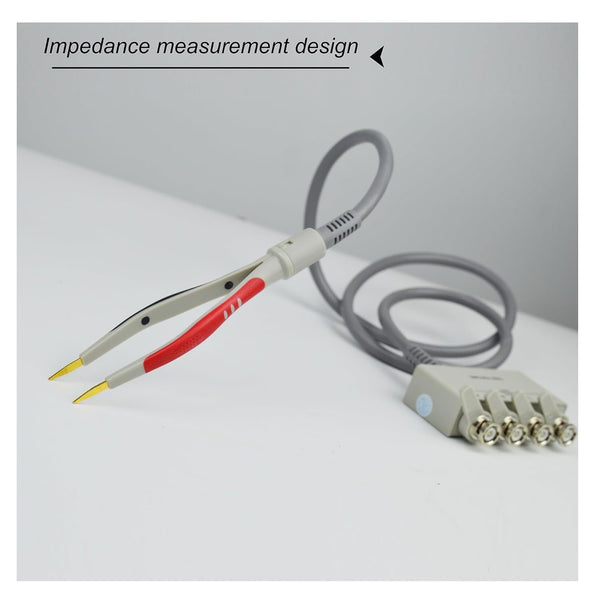

Designed for impedance evaluations of SMD,Tweezer type probe for measurement of leadless components (e.g., chip capacitors)
Used for parameter values on electronic components, constant checking of capacitors and coils

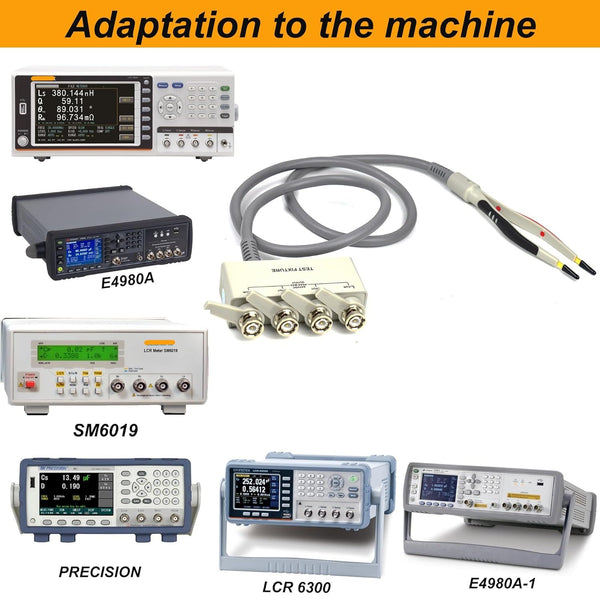

Applicable model：BA6010,BA6011,891 , E4980A,E4980AL,ET4410, E4980A, E4980AL, E4981A, E4990A,LCR-6002,LCR-6100,LCR-6300,LCR-6020,LCR-800/6000/8000G series
The standard BNC plug is compatible with many mainstream manufacturer instruments
The standard coaxial cable connector enables anti-interference connection from equipment to cables with a long insertion life, making it suitable for most LCR Meter.
Maximum Frequency: 5Hz~100 kHZ
Designed for impedance evaluations of SMD,Tweezer type probe for measurement of leadless components (e.g., chip capacitors)

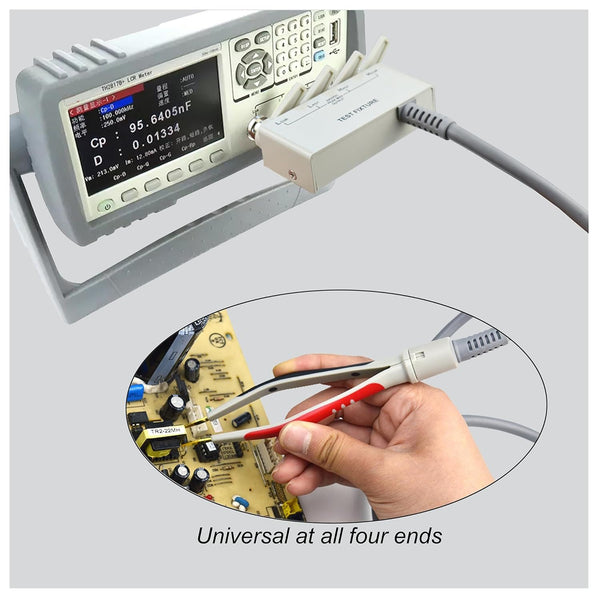

This Kelvin Clip allows for precise measurements by connecting to LCR meters
Reliable Measurement by Minimizing measuring errors caused by wiring of test leads
Used for parameter values on electronic components, constant checking of capacitors and coils
For use with 4 terminal-pair LCR Meters and Impedance Analyzers
Compensation block is included for compensation
4-CLIPS: Kelvin four wire detection for LCR Meter or impedance analyzer
four wire measurement of Kelvin test Leads with Shielding box and four wire insulation and lock to reduce the impact of leads and connection points on test results
The standard BNC plug is compatible with many mainstream manufacturer instruments
The standard coaxial cable connector enables anti-interference connection from equipment to cables with a long insertion life, making it suitable for most LCR Meter.
Shielding Box:Comes with a shielding box to protect the test leads from external interference. 4 Locks BNC Plug , More secure and reliable
Brand : ZIBOO
Model No : LCR-08

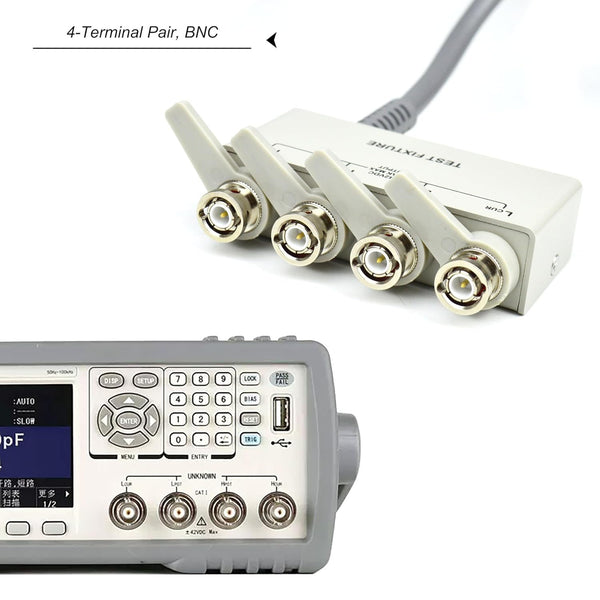

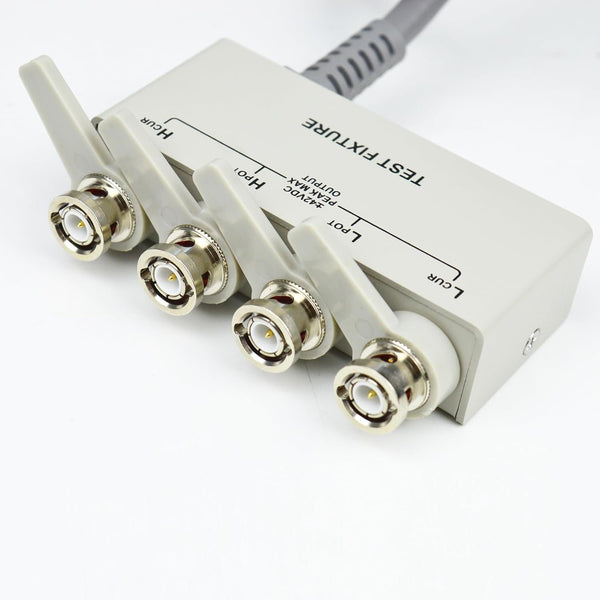

Terminal Connector: 4-Terminal Pair, BNC
DUT Connection: 4-Terminal
Max. Voltage: +/- 42 V peak max. (AC+DC)
Cable length: : 100 CM
Applicable model：BA6010,BA6011,891 , E4980A,E4980AL,ET4410, E4980A, E4980AL, E4981A, E4990A,LCR-6002,LCR-6100,LCR-6300,LCR-6020,LCR-800/6000/8000G series
TTH2816A/B, TH2817A/B/C, TH2825A, TH2827A, TH2829A, TH2829AX/LX/NX/CS-48,
H2838,TH2839,TH2829,TH2826,TH2827,TH283X Etc,For use with 4 terminal-pair LCR Meters and Impedance Analyzers
Maximum Frequency: 5Hz~100 kHZ
Package including : 1 Set LCR-08 4 Wire Test Fixture Tweezer
